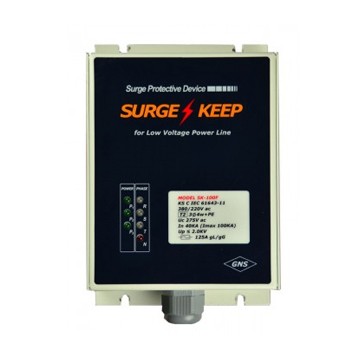

Model No. | SK-100F |
|---|---|
Class | Class Ⅱ |
Nominal Voltage | 380Y/220V ac |
Phase / Wire |  3Φ4w+PE |
Frequency | 50/60Hz |
MCOV | Uc 275V ac |
Nominal Discharge Current | In 40kA |
Maximum Discharge Current | Imax 100kA(CT1+CT2) |
Voltage Protection Level | Up ≤ 2.0kV |
Surge Fuse |  sauce125A gL/gＧ |
Environmental temperature | -40 ~ +85℃ |
Dimension(mm) | 152(W)ⅹ240(D)ⅹ82(H) |
Weight | 2.4Kg |
Standard | KS C IEC 61643-11 |
